This lineup is developed based on experience of manufacturing the automatic processing system of furniture panel, house panel and kitchen unit member.
Compare to the existing mass production method, this machine has same operation performance and productivity. In addition, this machine is capable of flash door of high-mix low-volume production by using barcode.
Also, it can offer automatic processing system by scheduled processing using central control panel.
This machine meets your needs in terms of both software and hardware.
NZ-1071PB

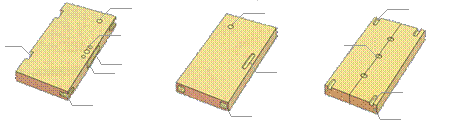

■ Supporting factory automated door processing line.
■ High-performance machine which processes knob side and hinge side simultaneously.
■ Rapid feed rate 50 mm/min.
| |
NZ-1071PB-1024 |
| Material size |
Length |
1,500~2,400 mm |
| Width |
300~1,000 mm |
| Thickness |
25 ~ 40 mm |
Spindle (Fixed side) |
No.1 |
5-horizontal boring spindles unit |
Motor |
1.0 kW |
Speed |
3,600 r.p.m. |
No.2 |
Single vertical boring spindle unit |
Motor |
1.0 kW |
Speed |
3,600 r.p.m. |
No.3 |
Horizontal router spindle unit |
Motor |
2.2 kW |
Speed |
18,000 r.p.m. |
No.4 |
Horizontal router spindle unit（inverse rotation） |
Motor |
2.2 kW |
Speed |
18,000 r.p.m. |
Spindle
(Moving side) |
No.5 |
Vertical router spindle unit |
Motor |
2.2 kW |
Speed |
18,000 r.p.m. |
No.6 |
Vertical router spindle unit |
Motor |
2.2 kW |
Speed |
18,000 r.p.m. |
No.7 |
Single vertical boring spindle unit |
Motor |
1.0 kW |
Speed |
3,600 r.p.m. |
No.8 |
Horizontal router spindle unit |
Motor |
2.2 kW |
Speed |
18,000 r.p.m. |
No.9 |
Horizontal router spindle unit（deep cutting） |
Motor |
3.7 kW |
Speed |
18,000 r.p.m. |
No.10 |
Single horizontal boring unit |
Motor |
1.0 kW |
Speed |
3,600 r.p.m. |
Stroke (Rapid traverse) |
Fixed side |
X axis |
3,075 mm (50m/min.) |
| Y axis |
175 mm (20m/min.) |
| Z axis |
100 mm (10m/min.) |
Moving side |
U axis |
3,075 mm (50m/min.) |
| V axis |
175 mm (20m/min.) |
| W axis |
100 mm (10m/min.) |
| A axis |
1,000 mm (10m/min.) |
| Column transport |
0.2 kW (50 m/min.) |
| NC control |
HEIAN-FANUC |
NZ-451P
■ No jig needed.
■ Supporting factory automated door processing line.
■ Processing of light cutout and a part of flush bolt.
■ Equipped with chip receiving bucket.
| |
NZ-451PBS-0921 |
Spindle |
No.1 180° swiveling horizontal router/boring spindle |
2.2 kW |
No.2 Router spindle |
3.7 kW |
No.3 Router spindle |
3.7 kW |
No.4 Piggyback router spindle |
2.2 kW |
Stroke (Rapid traverse) |
X axis |
2,800 mm (24 m/min.) |
Y axis |
800 mm (15 m/min.) |
Z axis |
150 mm (6 m/min.) |
U axis |
550 mm (10 m/min.) |
V axis |
550 mm (10 m/min.) |
| Table |
Table with elevating belt carrier（biconnected） |
| NC control |
HEIAN-FANUC |
DNZ-931PBS
■ Automatic operation cutting of one edge at a time. (left or right)
| |
DNZ-931PBS-2412 |
Spindle |
No.1, 2, 5 Router spindle |
2.2 kW |
No.3, 8, 9 Boring spindle |
1.0 kW |
No.4 Router spindle |
3.7 kW |
No.6,7 Saw spindle |
Air motor |
Table |
Simply adjustable |
2,400×1,200 mm |
Stroke (Rapid traverse) |
X axis |
3,000 mm (60 m/min.) |
Y axis |
200 mm (20 m/min.) |
Z axis |
200 mm (20 m/min.) |
| NC control |
HEIAN-FANUC |
FDR-431PHR
■ Automatic operation of all door processing steps by one-time setup.
■ No jig needed with block table.
| |
FDR-431PHR-D4-1325B |
Spindle |
No.1, 4 |
90°swiveling horizontal double-head router spindle (2 motors) |
Motor |
3.7 kW x 2 |
Speed |
18,000 r.p.m. |
| No.2, 3 |
Router spindle |
Motor |
5.5 kW x 2 |
Speed |
18,000 r.p.m. |
Rapid traverse |
No.5, 8 |
Horizontal single boring spindle |
Motor |
5.5 kW×2 |
Speed |
3,600 r.p.m. |
| No.6, 7 |
Single boring spindle |
Motor |
0.75 kW x 2 |
Speed |
3,600 r.p.m. |
Stroke (Rapid traverse) |
X axis |
1,300 mm (24 m/min.) |
| Y axis |
3,120 mm (24 m/min.) |
| Z axis |
200 mm (10 m/min.) |
Table |
Vacuum block type vertically long table |
1,000×2,500 mm |
Max. processible size |
Width×Length×Thickness |
1,000 x 2,400 x 50 mm |
| NC control |
HEIAN-FANUC |
ER-531PHR
■ Automatic operation of all door processing steps by one-time setup.
■ No jig needed with block table.
■ Without option jig, multipurpose CNC router.
| |
ER-531PHR-D1S1-2513 |
| Spindle |
No.1 |
90°swiveling horizontal double-head router spindle |
Motor |
2.2 kW x 2 |
| Speed |
18,000 r.p.m. |
| No.2, 4 |
No.2, 4 Router spindle
|
Motor |
4.5 kW x 1 |
| Speed |
18,000 r.p.m. |
| No.3 |
Horizontal router spindle unit |
Motor |
2.2 kW x 1 |
| Speed |
18,000 r.p.m. |
| No.5 |
90°swiveling horizontal double-head router spindle (2 motors) |
Motor |
2.2 kW x 2 |
| Speed |
18,000 r.p.m. |
| No.6 |
90°swiveling saw spindle |
Motor |
1.8 kW x 1 |
| Speed |
5,000 r.p.m. |
| No.7 |
Single boring spindle |
Motor |
0.75 kW x 1 |
| Speed |
3,600 r.p.m. |
| Stroke(Rapid traverse) |
X axis |
3,300 mm (30 m/min.) |
| Y axis |
1,450 mm (30 m/min.) |
| Z axis |
150 mm (60 m/min.) |
DNZ-931PBS
| |
DNZ-931PBS-2412 |
| Spindle |
No.1 |
Horizontal router spindle (superior) |
Motor |
2.2 kW x 2 |
Max. Collet size |
φ16 mm |
Speed |
4,000~18,000 r.p.m. |
| No.2 |
Vertical router spindle (superior ) |
Motor |
2.2 kW x 2 |
Culet size |
φ16 mm |
Speed |
4,000~18,000 r.p.m. |
| No.3 |
Vertical boring spindle (subordinate) |
Motor |
1.0 kW x 2 |
Shaft tool |
M8 |
Speed |
60 Hz, 3,600 r.p.m. |
| No.4 |
Horizontal router spindle (superior) |
Motor |
2.2 kW x 2 |
Collet size |
φ16 mm |
Speed |
4,000~18,000 r.p.m. |
| No.5 |
Horizontal router spindle (subordinate) |
Motor |
3.7 kW x 2 |
Collet size |
φ20 mm |
Speed |
4,000~18,000 r.p.m. |
| No.6 |
Horizontal router spindle (subordinate) |
Motor |
2.2 kW x 2 |
Collet size |
φ16 mm |
Speed |
4,000~18,000 r.p.m. |
| No.7, 8 |
Horizontal router spindle (subordinate) |
Motor |
Air motor type |
Cutter |
φ50×φ5×2.4 mm |
Speed |
30,000 r.p.m. |
| No.9 |
Horizontal router spindle (subordinate) |
Motor |
1.0 kW x 2 |
Shaft tool |
M8 |
Speed |
60 Hz, 3,600 r.p.m. |
| Stroke（Rapid traverse） |
X axis |
3,200 mm （60 m/min） |
Y axis |
200 mm （20 m/min） |
Z axis |
200 mm （10m/min） |
| NC control |
HEIAN-FANUC |

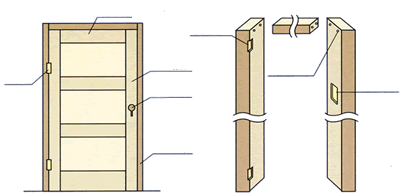

■ Machine for boring, doweling and chamfering to vertical and horizontal rail of wooden material door.
RP-2500/5N
■ Chamfering of pane is possible with option.
■ Installed HEIAN PRO-RP software.
| |
RP-2500/5N |
| Processible horizontal stile |
Length |
250~700 mm |
| Width |
80~600 mm (3 pieces on the table) |
80~380 mm (6 pieces on the table) |
| Thickness |
20~40 mm |
| Processible vertical stile |
Length |
350~2,400 mm |
| Width |
100~200 mm |
| Thickness |
20~40 mm |
| Spindle |
Boring unit |
1 unit (0.6 kW) |
| Glue unit |
1 unit |
| Dowel unit |
1 unit (φ12 mm) |
| Cutter unit |
2 unit (3.7 kW×2) |
|
|
